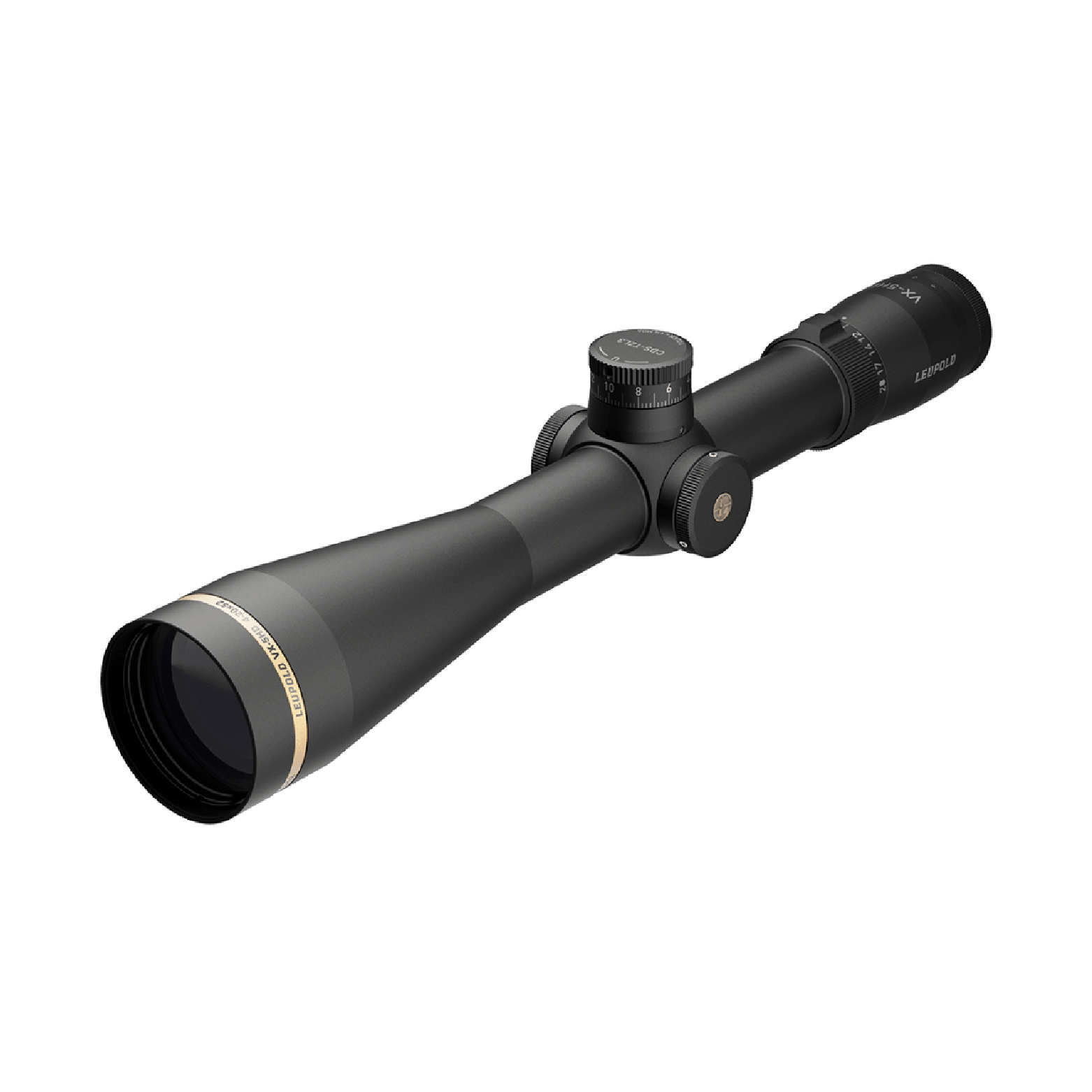

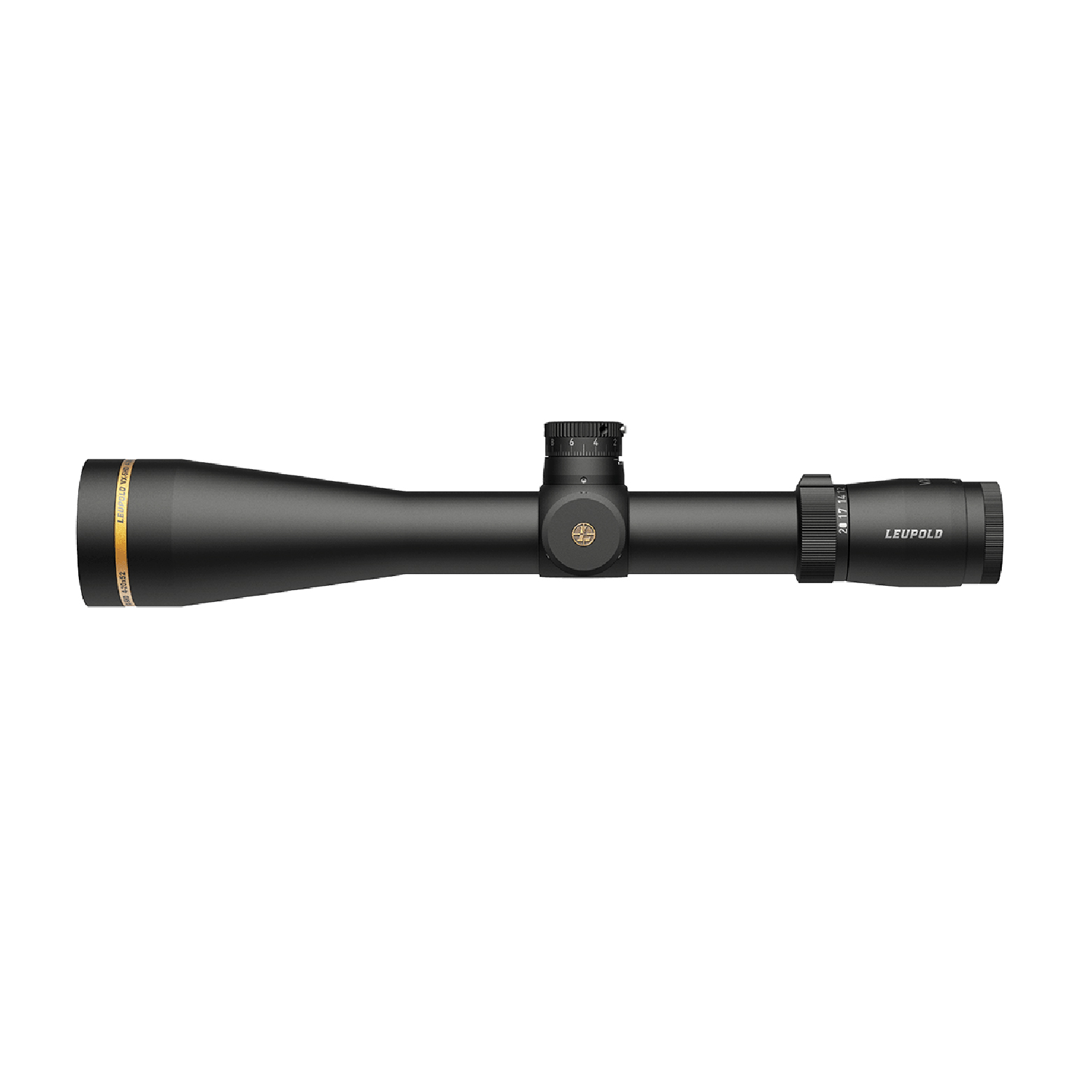

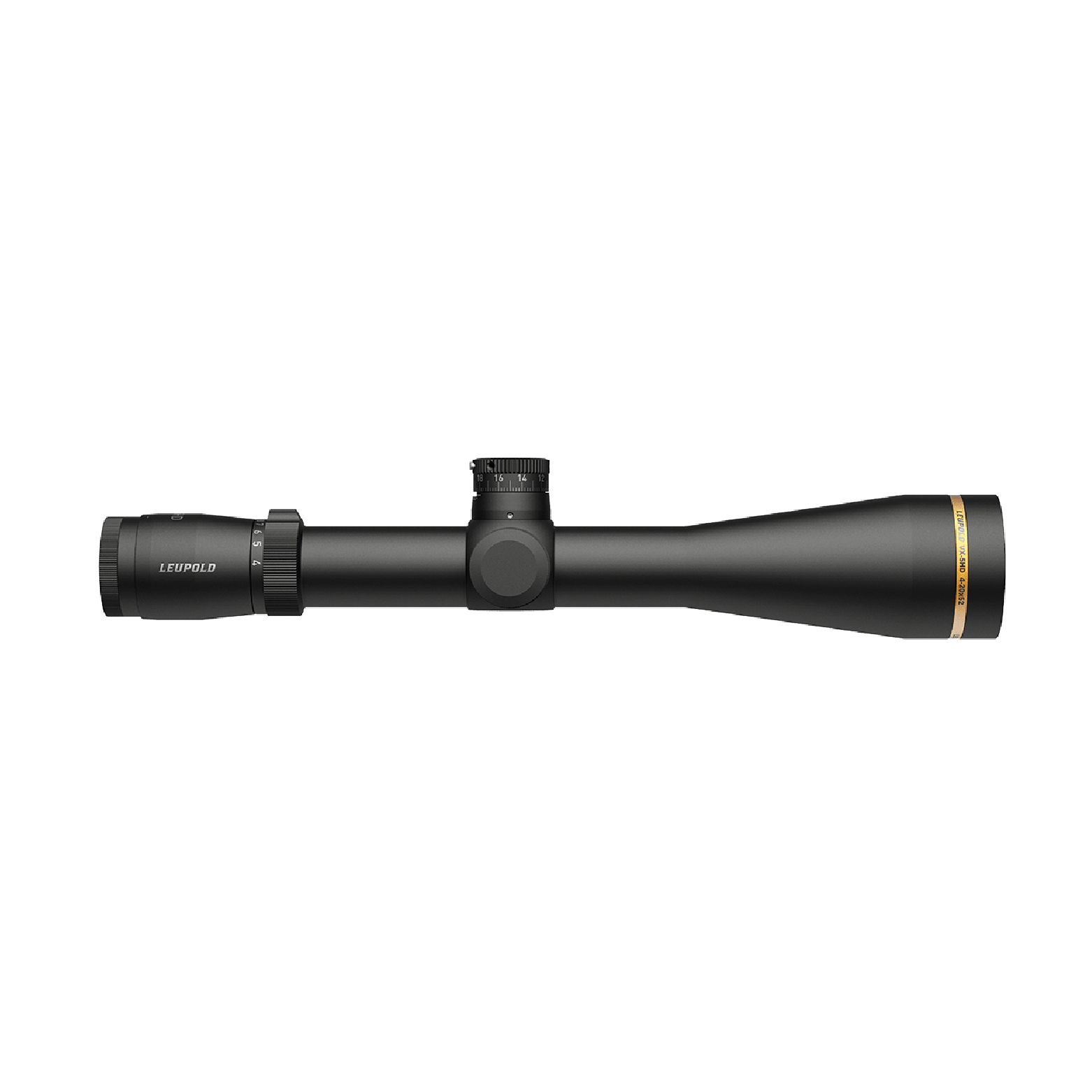

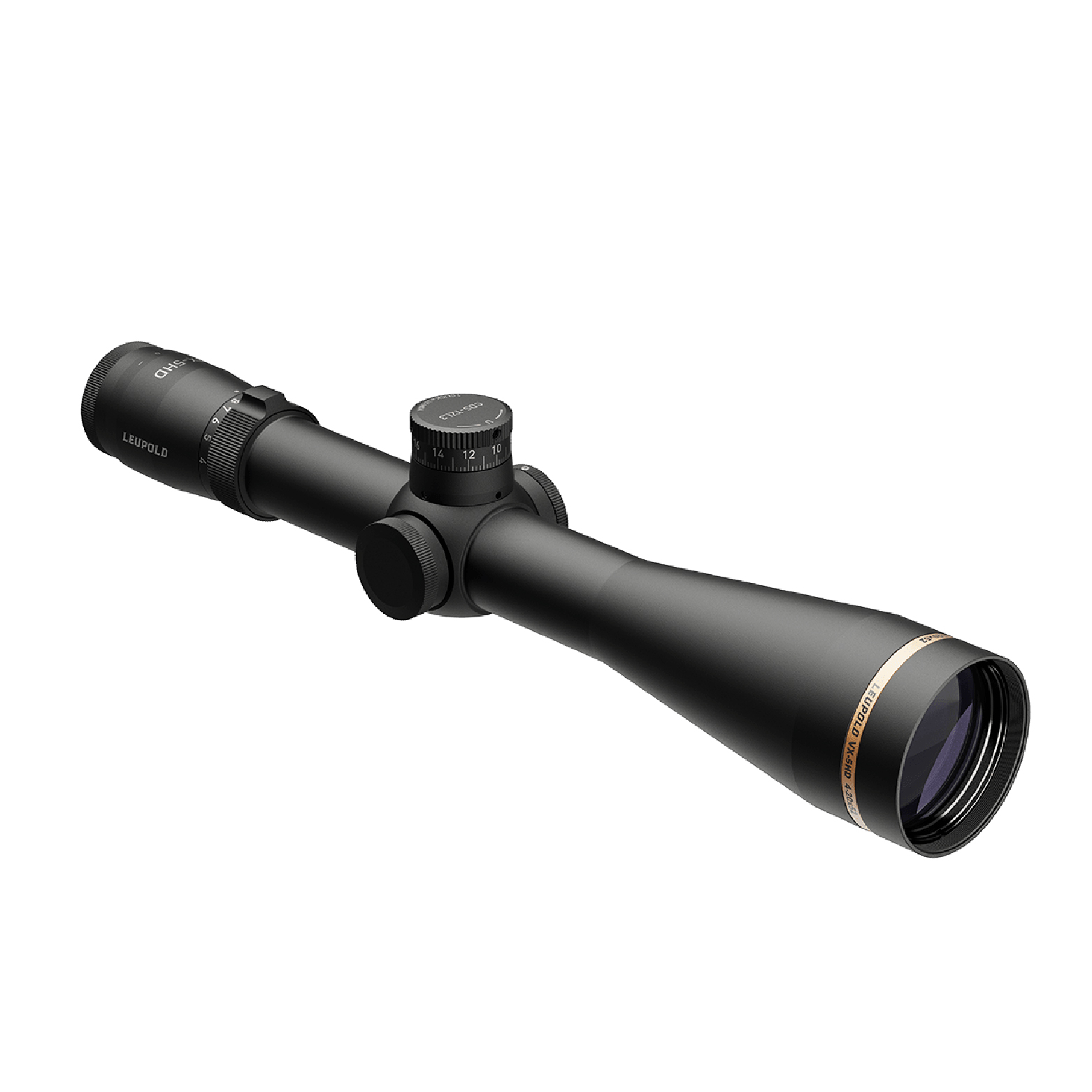

The VX®-5HD 4-20x52mm may just be that sweet spot you’ve been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas and enough horsepower at the top-end to make accurate shots at long-range distances. Plus, the CDS-TZL3 elevation adjustment takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.

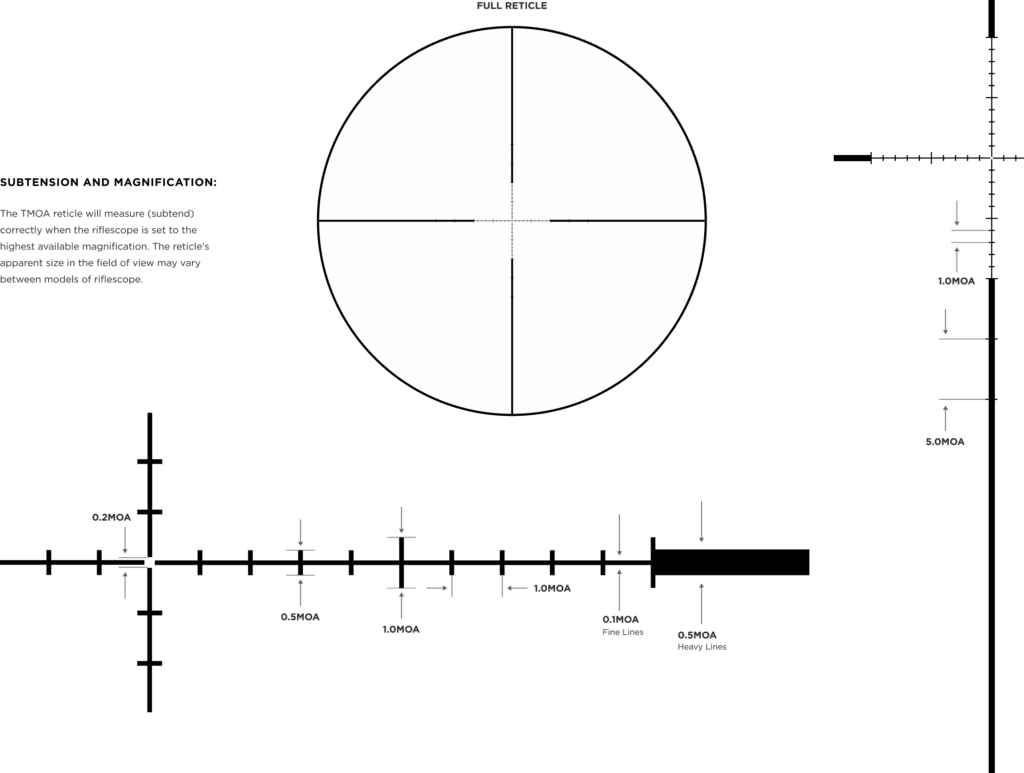

Detailed reticle info

• Based off a TMR® reticle, but in a MOA configuration
• Aides in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
• Hash marks are in 1 MOA increments
• Marks extend to 10 MOA on each side
• 1 MOA is approximately 1 inch at 100 yards
• Not caliber specific
• Rear (second) focal plane

Specifications

More Information

BDC Dial Included	No
Custom BDC Dial Compatible	Yes
Daylight Bright Illumination	No

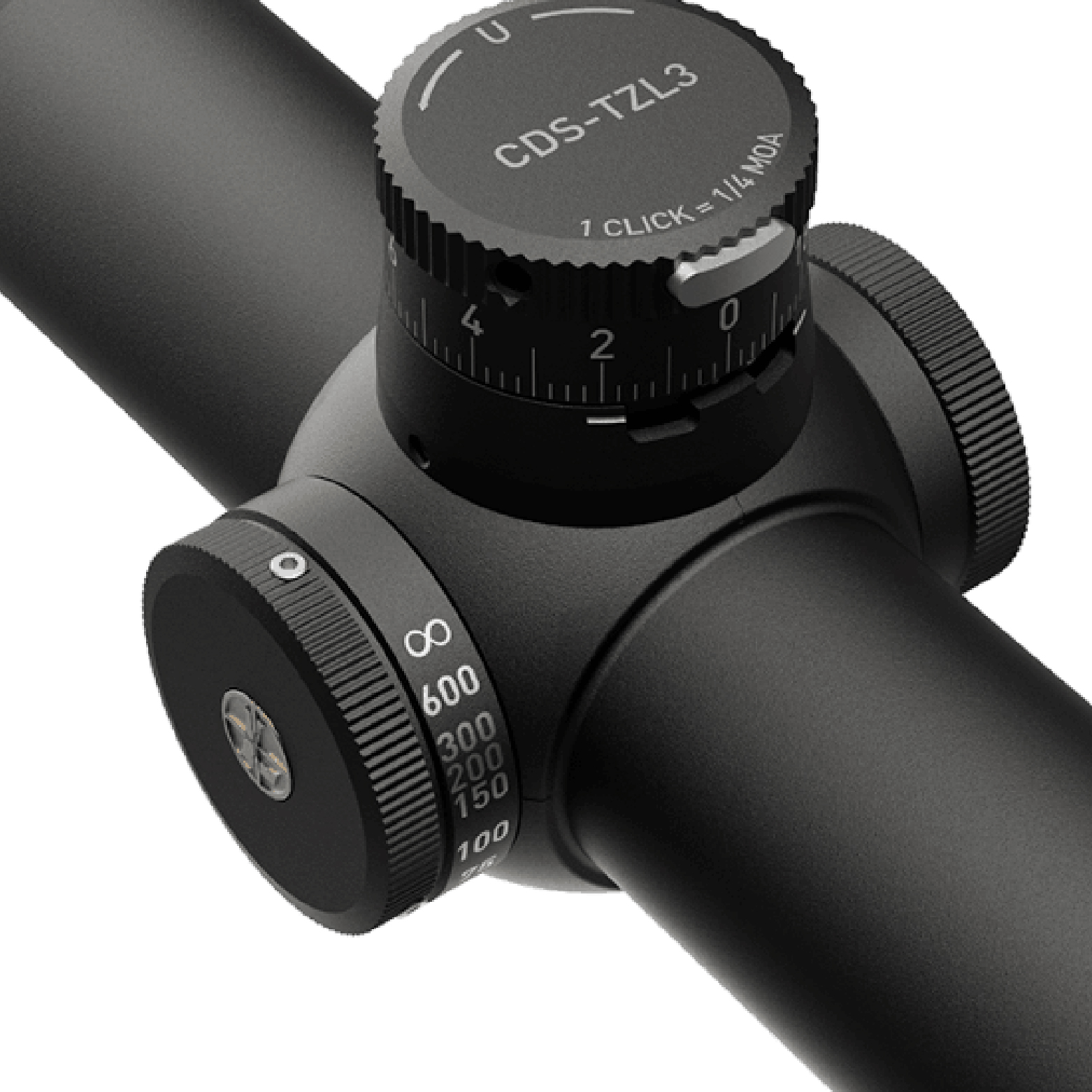

Elevation Adjustment Type	CDS-TZL3
Electronic Reticle Level	No
Illuminated Reticle	No
Light Management System	Professional-Grade Optical System
Locking Dial	Yes
Magnification Type	Variable
Motion Sensor Technology (MST)	No
Nightvision Compatible Illumination	No
Reticle Focal Plane	Second Focal Plane
Revolution Indicator	Yes
Reticle	TMOA
Rezero Type	Set Screw
Reticle Type	Second Focal Plane
Adjustable Objective	No
Windage Adjustment Type	Pop-Up Rezero
Weight (oz)	23.8
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	75
Elevation Adjustment Range (MIL)	22
Elevation Adjustment Range (cm @ 100m)	218
Elevation Adjustment Per Revolution	20 MOA
Elevation Dial Travel Limit	60MOA
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	75
Windage Adjustment Range (MIL)	22
Windage Adjustment Range (cm @ 100m)	218
Windage Adjustment Per Revolution	20 MOA
Magnification Max	20
Magnification Min	4
Objective Lens Diameter (mm)	52
Linear FOV Low Mag (ft@100yds)	28.1
Linear FOV High Mag (ft@100yds)	5.8
Angular FOV Low Mag (Degrees)	5.4
Angular FOV High Mag (Degrees)	1.1
Eye Relief Low Mag (in)	3.7
Eye Relief High Mag (in)	3.8
Minimum Parallax-Free Distance (yd)	50
